Technical Parameters
|
Technical dataT |
MST-301 |
|
Fluid pressure ratio |
30:1 |
|
Maximum fluid working pressure |
21.0Mpa/210bar |
|
Delivery(liter)/MIN |
3.8 |
|
Displacement per cycle |
60cc |
|
Stroke length (MM) |
100 |
|
Air pressure range(BAR) |
3-7 |
|
Maximum operating temperature |
82ºC (180ºF) |
Product Features

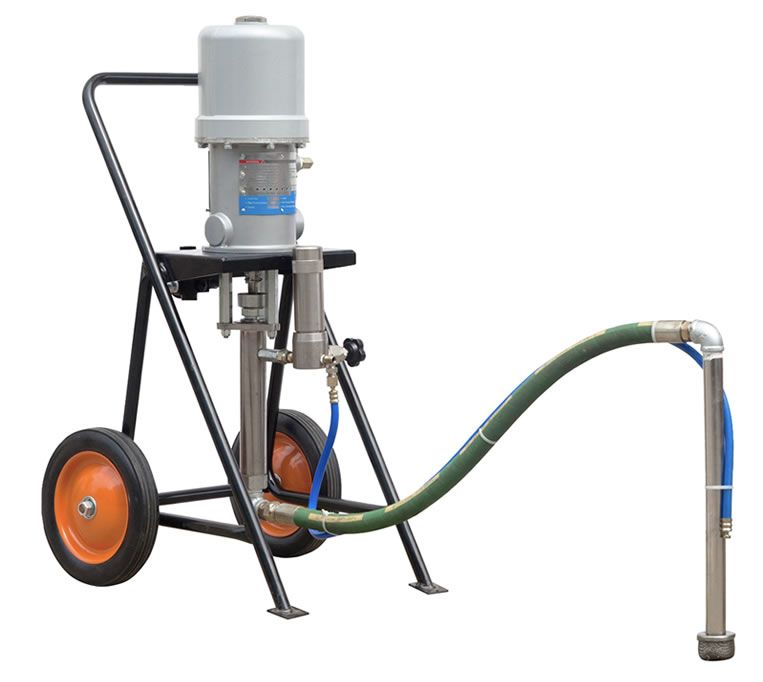

MST-301 high pressure airless sprayer is specifically designed for the coating of large industrial components, covering a wide range of heavy industry and transportation fields such as steel structures, ships, automobiles, bridges, containers, pipelines, storage tanks, aerospace, etc. It can not only easily handle complex construction scenarios and efficiently spray thick film heavy-duty anti-corrosion coatings and various new types of coatings, but also is compatible with a full range of coating materials such as polyurethane topcoats, epoxy mica iron intermediate coats, conventional paints, waterproof coatings, fluorocarbon coatings, ceramic coatings, etc., making it widely applicable.
