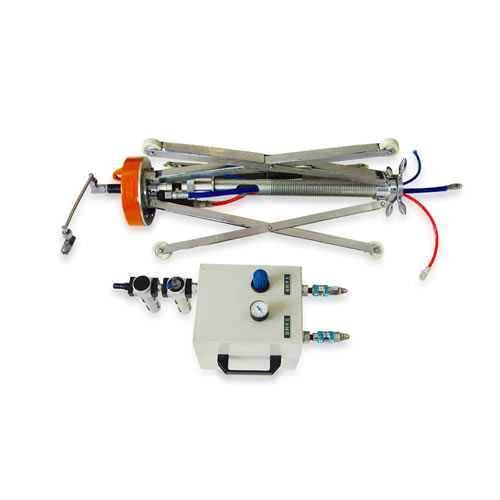

MST-N5 Type Pipe Inner Wall Spray Device

The MST-N5 type pipe inner wall spray device can be used in conjunction with the airless sprayer produced by our factory, and is suitable for coating the internal walls of various pipelines with an inner diameter ranging from Φ500mm to Φ1800mm. The equipment delivers high-pressure paint through the airless sprayer, and completes uniform spraying of the internal wall by rotating and moving within the pipeline through the sprayer.

Send Inquiry

Detailed Description

Technical Parameters

In spray coating pipeline hole scope (mm)	Ф500-1800
Manifold pressure (MPa)	0.4-0.6
Spray nozzle velocity of whirl (r /min)	10-100
Fuselage length (mm)	830
Fuselage weight (kg)	23

Product Features

MST-N5 type pipe inner wall spray device with our airless spray machine togethe

could be used in spraying a variety of channels of which inside diameter is Ф 500 – Ф1800mm. high-pressure paints which transfers from the airless spray coating machine and then goes through pipe inner wall spray device, rotates and moves forward ,and at last finish the pipe coating successfully.

MST-N5 type spray paint is fan-shaped, so adaptable to the majority of the high viscosity of paint spraying.

MST-N5 type are adapt to a variety of channels with diameter Ф500 – Ф1800mm.

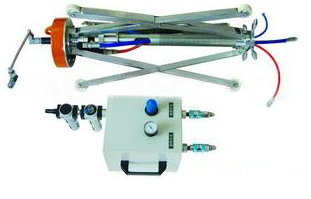

Contour Structure

2-图1
