MST-N3 Type Pipe Inner Wall Spray Device

The MST-N3 type pipe inner wall spray device is specifically designed for the coating of medium and large-diameter pipeline internal walls. It can be used in conjunction with our airless sprayer and is compatible with various pipelines ranging from Φ300mm to Φ1200mm in internal diameter. Relying on high-pressure airless feeding, the sprayer efficiently completes internal wall spraying construction through its rotation and advancement within the pipeline.

Send Inquiry

Detailed Description

Technical Parameters

In spray coating pipeline hole scope (mm)	Ф300-1200
Manifold pressure (MPa)	0.4-0.6
Spray nozzle velocity of whirl (r / min)	10-100
Fuselage length (mm)	950
Fuselage weight (kg)	18

Product Features

MST-N3 type pipe inner wall spray device with our airless spray machine together could be used in spraying a variety of channels of which inside diameter is Ф300 - Ф1200mm. high-pressure paints which transfers from the airless spray coating machine and then goes through pipe inner wall spray device, rotates and moves forward ,and at last finish the pipe coating successfully.

MST-N3 type spray paint is fan-shaped, so adaptable to the majority of the high viscosity of paint spraying.

MST-N3 type are adapt to a variety of channels with diameter Ф300 - Ф1200mm.

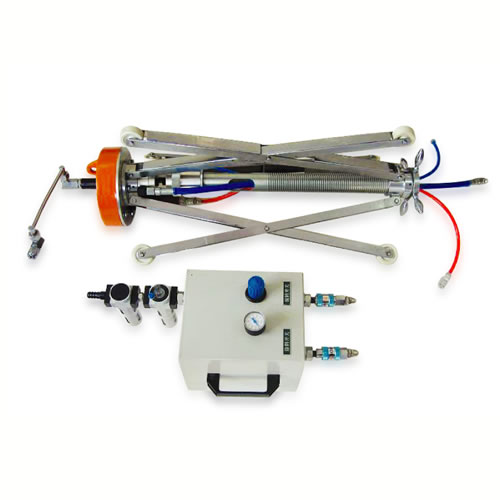

Contour Structure

2-图1
