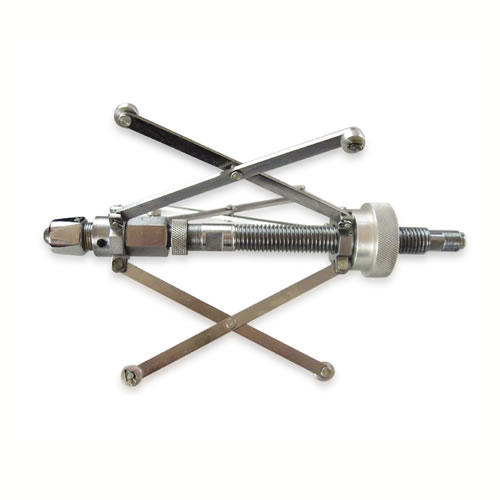

MST-N1 Type Pipe Inner Wall Spray Device

The MST-N1 pipeline internal wall sprayer is specifically designed for coating small and medium-sized pipeline internal walls. The equipment utilizes a high-pressure airless sprayer to deliver paint, which is atomized by a dedicated nozzle to form a trumpet-shaped (conical, hollow) mist coating that evenly adheres to the internal wall of the pipeline, completing the internal wall coating operation.

Send Inquiry

Detailed Description

Technical Parameters

In spray coating pipeline hole scope (mm)	Ф50-300
Fuselage length (mm)	Ф50×280(Long)
Fuselage weight (kg)	0.9
Coating controlling switch spray gun weight（weight）	0.45

Product Features

MST-N1 type pipe inner wall spray device is for bore and medium-sized pipe inner wall coating, high-pressure paints which transfers from the airless spray coating machine and goes through a special nozzle is formed a trumpet (Cone -shaped, hollow), evenly spray the inner surface of the pipe which lead to successful pipe coating.

MST-N1 type is mainly applied in Ф50 - Ф300mm pipes, paint viscosity shall not exceed 80 seconds (No. 4 Ford cup). If the pait viscosity is higher than 80 seconds, solvent should be added for dilution.

MST-N1 type basically is unaffected by pipe length, but preferably pipe length is not longer than 15 meters.

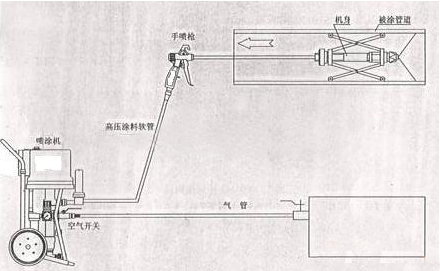

Contour Structure

1-图1
